Annealed Steel Plate of SCM440, 1.7225, 4140 For Hot Rolled Alloy
Steel
Perform Standard: GB/T 3077-1999
Equivalent grades:
| GB(China) | DIN(German) | AISI(USA) | JIS(Japan) |
| 42CrMo | 1.7225 | SAE4140 | SCM440 |
Chemical Composition(%)
| C | Si | Mn | Cr | Mo | P | S | Ni |
| 0.38~0.45 | 0.17~0.37 | 0.60~0.90 | 0.90~1.20 | 0.15-0.25 | ≤0.018 | ≤0.030 | ≤0.012 |
1, Application
It used for section large forgings, such as locomotive traction
gears, with supercharger drive gear, the rear axle, the connecting
rod and the spring load greatly clip,oil drill pipe joints and
fishing tools,etc.
2, Feature
1) Weldability suffers with increasing chromium content;
2) High temperature strength and high pressure hydrogenation
properties are promoted by chromium and molybdenum;
3) Molybdenum significantly reduces temper brittleness;
4) Chromium renders steel oil hardenable and increase
hardenability;
5) Chromium molybdenum high tensile steel with yield strength of
550N/mm2;
3, Recommend heat treatment:
| Quenching | Tempering | |
| Heating temperature/ºC | Cooling way | Hardness (HRC) | Tempering temperature/ºC | Cooling way | Hardness
(HRC) |
| 850-880 |
| Oil Cooling | 50-52 | 450-650 | Air | 25-40 |
4,Mechanical Properties:
Tensile strength:σb (MPa):≥1080(110)
Yield strength:σs (MPa):≥930(95)
Elongation:δ5 (%):≥12
Section shrinkage:ψ (%):≥45
Impact work:Akv (J):≥63
Impact toughness value:αkv (J/cm²):≥78(8)
5,Ready Stock:
| Grade | Size(mm) |
| SCM440 Plate | Thickness | Width | Length |
| 12-280 | 2200 | 5800 |
| SCM440 Round Bar | Diameter | Length |
| 16-450 | 3000-6000 |
6,Delivery state:
Hot rolled, Heat Treatment,black, hardness or tempered
hardness:28-34 HRC.
Annealing:HBS<=235.
7, Delivery time
For abundant stock, 7-15 days.For customized products, 30-50 days.
We have full set of equipement (sawing machine/grinding/polishing
machine) to make customer's specification.
8,Our service:
1) sizes, materials and others are all at your requirements and can
be changed;
2) Price varies on materials, dimensions, finish craft and
different payments;
3) We are direct manufacture in machinery manufacturing work with
experience of several decades;
4) Detail production design will be made according to information
you offered;
5) We have adequate inventory, so that we can quick delivery;
6) The most important is that we have advanced equipment.
Listed specifications are only typical grades; products of required
specifications can be developed/produced per international, Chinese
or industry standards, or based on agreements with customers.

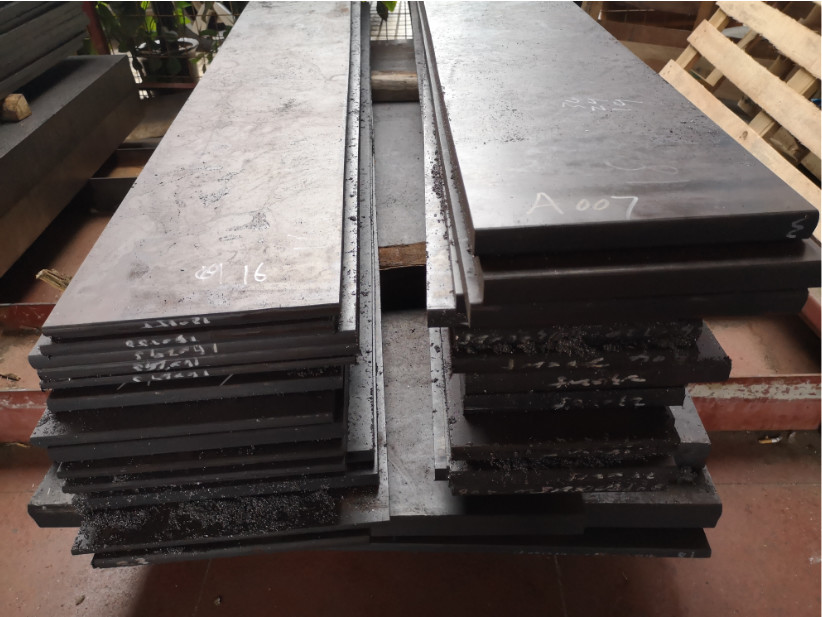

Product show:
Strict Quality Control
Loading Photo
About us:Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel
company, which specialized in exporting mould steel products based
in China. With more than 20 years experience in special steel
industry, our main products are Plastic Mould Steel, Hot Work Mould
Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel,
Stainless Steel, Carbon Steel and Forged Block.
To ensure provide high quality products to customers, we have close
cooperation with many Chinese first class special steel
enterprises, including Baosteel Group, Dongbei Special Steel,
Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng
Special Steel, Daye Special Steel.
We have thousand tons of stock materials in our own factory and
also can provide processing services to customers. We are full of
export experience for many years, the product covers America,
Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia,
Vietnam, Taiwan, and Middle-East.
After years of development, the company has established a complete
quality management and export service system. We have a group of
experienced and competent elites and is capable of offering the
best service to clients.
Our company equips with large-sized Vertical saw machines,
Horizontal saw machines, Milling machines, Grinding machines and
other advanced equipments to provide customers with cutting and
other processing services.
All the products should be inspected the metallographic analysis,
hardness, ultrasonic flaw detection and other strict inspection
processes, which meet the standards of DIN, AISI, JIS and GB to
ensure their function and quality.
