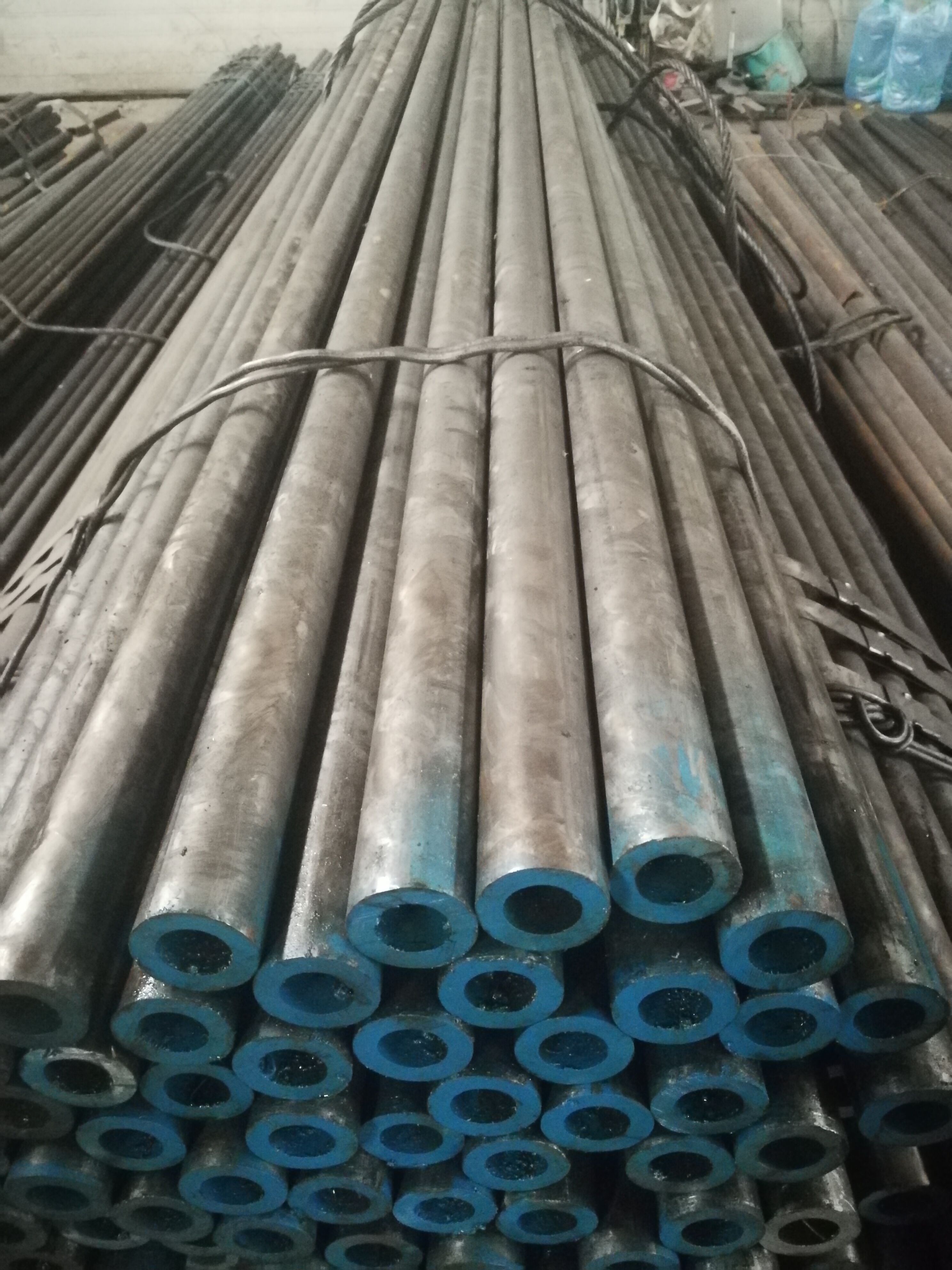

Hot Rolled Alloy Steel Seamless Bearing Tube & Pipe
AISI52100/EN31/JIS SUJ2/GBCR15
Product Introduction
Alloy Steel 52100, as known as AISI 52100, contains a high level of
carbon and chromium. This alloy offers users good machinability, as
well as forming through conventional methods. The hardening of
Alloy Steel 52100 can be achieved by cold working, heating, and
quenching.
Features
1. 1 A kind of high carbon and chromium bearing steel which most
widely used with a good permance and less alloy content.
2. 2. High hardenability and good comprehensive performance.
3. 3. Good machinability after spheroidizing annealing
4. 4. High hardness, uniform organization, good wear resistance,
high contact fatigue performance after quenching and tempering.
5. 5. Good hot working performance
Similar Standards
| Chinese | American | German | Japanese |
| GB | AISI | DIN | JIS |
| GCr15 | SAE52100 | 100Cr6/EN31 | SUJ2 |
Chemical Composition
| Grades | C | Si | Mn | P | S | Cr | Mo | Cu | Ni |
| GCr15/52100 | 0.95-1.05 | 0.15-0.35 | 0.2-0.4 | ≤0.027 | ≤0.02 | 1.3-1.65 | ≤0.1 | ≤0.25 | ≤0.3 |
| 100Cr6 | 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.025 | 1.4-1.65 | ≤0.08 | ≤0.25 | ≤0.3 |
Heat Treatment
| Quenching | Tempering |
| Heating Temperature/℃ | Cooling | Hardness/HRC | Heating Temperature/℃ | Cooling | Hardness/HRC |
| 830-850 | Oil | 62-65 | 150-190 | Air | 58-62 |
General Applications
1. 1 For making all kinds of bearing ring and rolling element, such
as steel ball roller and ferrule of inernal combustion engine,
electric motorcycle, automonilrd tractors, machine tools, rolling
mill, boring machine, mining machinery, general machinery, high
load and high speed roating mechanical transmission bearing.
2. 2. Sometimes also used to make tools, such as pumching die and
measuring tools
3. 3The automotive and aircraft industry use Alloy Steel 52100 for
a number of different applications including:
- Anti-friction bearings
- Mill rolls
- Taps
- Punches
- Aircraft parts
Stock Size
| Round Bar | Diameter | 16-280mm |
| Length | 4000-10000mm |
| Flat Steel | Thickness | 8-200mm |
| Length | 3000-4000mm |
