High Carbon Alloy Seamless Bearing Steel Pipe & Tube AISI 52100 /
JIS SUJ2/EN31/GB GCR15
Product Introduction
GCr15 refers to a high carbon and chromium bearing steel with less
alloy content. After quenching and low temperature tempering, it
has high hardness, uniform structure, good wear resistance and high
contact fatigue performance.
Features
1. 1 A kind of high carbon and chromium bearing steel which most
widely used with a good permance and less alloy content.
2. 2. High hardenability and good comprehensive performance.
3. 3. Good machinability after spheroidizing annealing
4. 4. High hardness, uniform organization, good wear resistance,
high contact fatigue performance after quenching and tempering.
5. 5. Good hot working performance
Similar Standards
| Chinese | American | German | Japanese |
| GB | AISI | DIN | JIS |
| GCr15 | SAE52100 | 100Cr6/EN31 | SUJ2 |
Chemical Composition
| Grades | C | Si | Mn | P | S | Cr | Mo | Cu | Ni |
| GCr15/52100 | 0.95-1.05 | 0.15-0.35 | 0.2-0.4 | ≤0.027 | ≤0.02 | 1.3-1.65 | ≤0.1 | ≤0.25 | ≤0.3 |
| 100Cr6 | 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.025 | 1.4-1.65 | ≤0.08 | ≤0.25 | ≤0.3 |
Heat Treatment
| Quenching | Tempering |
| Heating Temperature/℃ | Cooling | Hardness/HRC | Heating Temperature/℃ | Cooling | Hardness/HRC |
| 830-850 | Oil | 62-65 | 150-190 | Air | 58-62 |
General Applications
1. 1 For making all kinds of bearing ring and rolling element, such
as steel ball roller and ferrule of inernal combustion engine,
electric motorcycle, automonilrd tractors, machine tools, rolling
mill, boring machine, mining machinery, general machinery, high
load and high speed roating mechanical transmission bearing.
2. 2. Sometimes also used to make tools, such as pumching die and
measuring tools

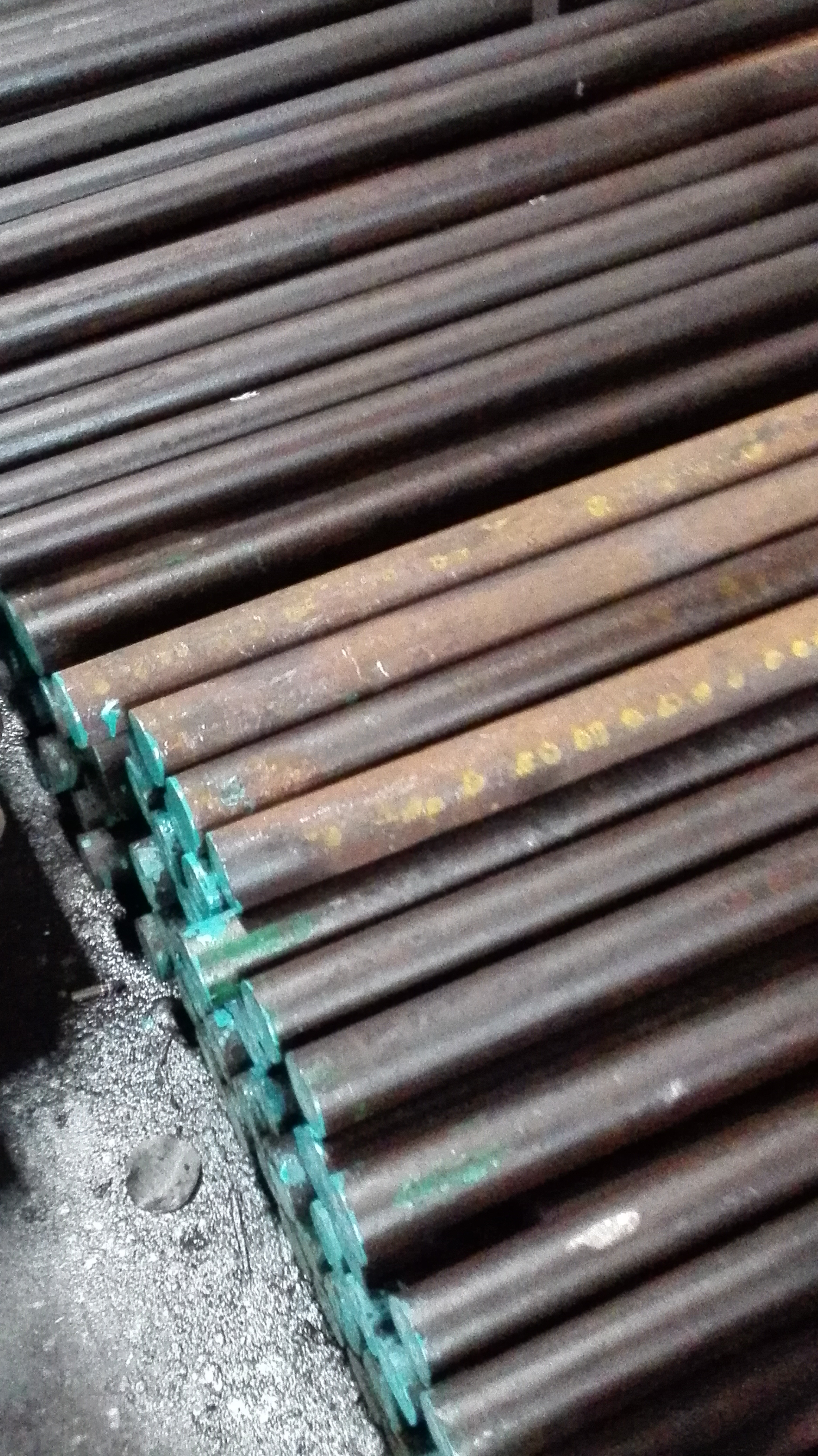

Stock Size
| Round Bar | Diameter | 16-280mm |
| Length | 4000-10000mm |
| Flat Steel | Thickness | 8-200mm |
| Length | 3000-4000mm |
