SKD11 Forged Rolled Tool Steel Flat Bar 1.2379/X153crmo12 D2
D2 Tool Steel is a versatile high-carbon, high-chromium,
air-hardening tool steel that is characterized by a relatively high
attainable hardness and numerous, large, chromium-rich alloy
carbides in the microstructure. These carbides provide good
resistance to wear from sliding contact with other metals and
abrasive materials.
Chemical Composition (%)
| C | Si | Mn | P | S | Cr | Mo | V |
| 1.4-1.6 | 0.30-0.5 | 0.3-0.5 | ≤0.030 | ≤0.030 | 11-13 | 0.7-1.2 | ≤0.80 |
Recommend heat treatment:
| Quenching | Tempering |
| Heating temperature/ºC | Cooling way | Hardness (HRC) | Tempering temperature
/ºC | Tempering number | Hardness
(HRC) |
| First preheating | Second preheating | Last heating |
| 600-650 | 800-850 | 1020-1040 | Air Cooling | 61-63 | 500-560 | 2 | ≥58 |

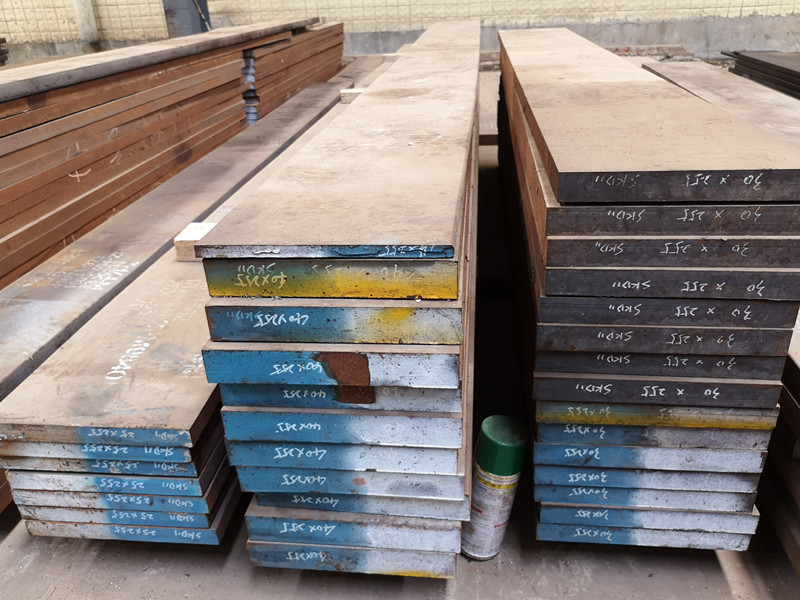

Products show:
Cold Work Alloy Tool Steel for Cutters D2 SKD11 1.2379 round & flat
bar
Features:
A,High wear resistance and toughness.
B,Alternative to oil harding tool steel.
C, Offer a measure of corrosio resistance when polished.
Application
Rolls, punches, dies for blanking, forming, trimming, and thread
rolling, shear knives, food-processing knives, and gauges.
Changfeng Steel hot sale product:
| STANDARD/GRADE | Flat Bar Size(mm) | Round bar Size(mm) | Technics |
| DIN | AISM | JIS | GB(China) | Thickness | Width | Length | Diameter | Length |
| 1.121 | SAE1050 | S50C | 50# | 10-450 | 155-2200 | 2000-12000 | | | Forged, Hot Rolled |
| 1.2311 | P20 | PDS-3 | 3Cr2Mo | 10-460 | 155-2200 | 2000-10000 | 20-200 | 2000-6000 |
| 1.2738 | P20+Ni | - | 3Cr2NiMnMo | 21-300 | 155-2200 | 2000-8000 | 20-200 | 2000-6000 |
| 1.2379 | D2 | SKD10 | SKD10 | 10-200 | 155-810 | 2000-6000 | 14-80 | 3000-6000 |
| 1.2080 | D3 | SKD1 | 3Cr2Mo | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
| 1.2083 | 420 | - | 4Cr13 | 10-500 | 155-1200 | 2000-6000 | 12-300 | 3000-6000 |
| 1.2344 | H13 | SKD61 | 4Cr5MoSiV1 | 10-500 | 155-1600 | 2000-6000 | 16-400 | 3000-6000 |
| 1.2510 | O1 | SKS3 | 9CrWMn | 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
| 1.7225 | SAE4140 | SCM440 | 42CrMo | 10-280 | 155-2200 | 2000-6000 | 16-450 | 3000-6000
|
About Us
Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in
exporting mould steel products based in China. With more than 20
years experience in special steel industry, our main products are
Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon
Steel and Forged Block.
To ensure provide high quality products to customers, we have close
cooperation with many Chinese first class special steel
enterprises, including Baosteel Group, Dongbei Special Steel,
Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng
Special Steel, Daye Special Steel.
We have thousand tons of stock materials in our own factory and also can
provide processing services to customers. We are full of export
experience for many years, the product covers America, Germany,
France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam,
Taiwan, and Middle-East.
FAQ
Q1: What do you do for the control of the quality?
A1: Before loading into the container, our products will all be
inspected by ultrasonic inspection. Quality Grade conforms to SEP
1921-84 E/e, D/d, C/c as per customer's request.
Q2:: What are your hot-selling products ?
A2: S50C / P20 / D2 / 1.2379 / H13 / 1.2344 / CR12MOV / 4140 /EN19
EN24 EN31, abundant stock for both plates and rounds. Competitive
prices and short lead-time.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you
come to China and arrange our driver to our airport to pick you up
when you come.
