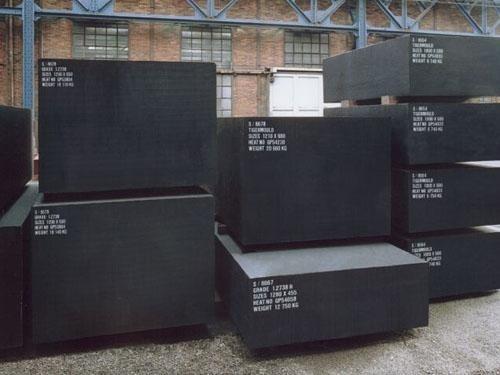

Sawing To Size Forged Die Block H13 / 1.2344 / SKD61 High
Temperature Strength
SKD61 mold steel is a kind of silicon, chromium, molybdenum,
vanadium medium alloy hot work die steel.
The organization of fine, fine grain of martensite, basically
distributed with small carbides after quenched,
tempered.Good comprehensive mechanical properties, and good
hardenability, more suitable for manufacturing large size, complex
shape of the mold.
Chemical composition(%)
| Grade | C | Si | Mn | P | S | Cr | Mo | V |
| H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| SKD61 | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| 1.2344 | 0.38-0.42 | 0.80-1.20 | 0.30-0.50 | ≤0.015 | ≤0.020 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
| 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
1, Features
a, High temperature strength and toughness, good wear resistance,
easy cutting.
b, SKD61 is a hot die steel with good strength, toughness and heat
resistance. It can make the mold
life longer, more stable performance, and easy to process, heat
treatment deformation is small.
2, Applications
a, Suitable to manufacturing aluminum, zinc, copper alloy extrusion
die, die casting, hot forging die and
hot shear blades, etc.
b, Extrusion mold of aluminum and magnesium, die-casting mold,
especially adapt to the mold in large and
complicated form.
c, Extrusion mold of copper alloy, die-casting mold.
3, Available size(mm)
| Flat Bar Size(mm) | Round bar Size(mm) |
| Thickness | Width | Length | Diameter | Length |
| 10-500 | 155-1600 | 2000-6000 | 20-400 | 3000-6000 |
4, Heat Treatment:
| Quenching | Tempering |
| Heating temperature/ºC | Cooling way | Hardness (HRC) | Tempering temperature
/ºC | Tempering number | Hardness
(HRC) |
| First preheating | Second preheating | Last heating |
| 500-600 | 820-860 | 1010-1060 | Oil Cooling | 53-55 | 560-620 | 2 | 50-47 |
5, Hardness: annealing 235 ~ 205 HB, quenching ≥50 HRC
