    Forged ESR Hot Work Tool Steel Die Steel Round Sheet Flat 1.2344 H13 SKD61

    Ask Lasest Price
    Brand Name : CF STEEL
    Model Number : 1.2344, H13, SKD61, 4Cr5MoSiV1
    Certification : ISO, Mill Certificate
    Price : Usd 2400-2540 per T
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Tons/ Month
    Delivery Time : 7-15 days
    MOQ : 3MT
    • Product Details
    • Company Profile

    Forged ESR Hot Work Tool Steel Die Steel Round Sheet Flat 1.2344 H13 SKD61

    Forged ESR Hot Work Tool Steel Die Steel Round Sheet Flat 1.2344 H13 SKD61


    1. Definition
    1.2344/H13/SKD61 steel is a pressure resistant hot work die steel. The steel is remelted by electroslag, uniform in material, good in hardenability, excellent in machinability and polishing performance, high toughness and plasticity, good high and low temperature wear resistance, and high temperature fatigue and heat resistance.


    2. Grades

    ChineseAmericanGermanSwedishJapanese
    GBAISIDINASSABJIS
    4Cr5MoSiV1H131.23448407SKD61


    3. Chemical Composition (%)

    CSiMnPSCrMoV
    0.35-0.401.00-1.200.40-0.60≤0.015≤0.0034.80-5.201.20-1.400.80-1.00

    4. Hardness

    Annealing hardnessQuenching hardnessTempering hardness
    ≤230HB51-55HRC46-50HRC

    5. Technical service
    1) Die vacuum heat treatment and die surface treatment (N-O,C-N, carburize and nitridation surface treatment).
    2) Black surface, annealing, hot rolled/forged, EAF/ESR, 2 or 4 sides cutting


    6. Heat Treatment

    Heating temperatureCooling wayHardness (HRC)Tempering temperature
    /ºC
    Tempering numberHardness
    (HRC)
    First preheatingSecond preheatingLast heating
    500-
    600
    820-
    860
    1010-
    1040
    Oil cooling53-55560-620250-46

    7. Available Size (mm)

    ShapeThickness/
    Diameter
    WidthLength
    Round Bar16-520/3000-6000
    Flat Bar16-260205-6103000-6000
    ForgedRound Bar150-450/2000-6000
    Block100-500600-10002000-6000

    8. Characteristics
    1) Cold and hot fatigue resistance, strong ability to resist crack.
    2) Electroslag remelting steel, high purity, good resistance to dissolve.
    3) Organizational structure of uniform, better heat resistance with good toughness, high temperature resistance metal erosion.
    4) Good resistance to high temperature tempering performance, hardness steady working under 600ºC, dimensional accuracy stability durability.


    9. Applications
    1) Cut alloy extruded and die casting moulds.
    2) Casting moulds, extruded moulds, forging moulds.
    3) Hot forging moulds, such as auto connecting rods, crank, stainless dinner knife.
    4) Aluminum extruded moulds, such as aluminum window frame, computer radiater.
    5) Lead,Zn and Al alloy die casting moulds, such as engine radiater, lights and other decorative products.
    6) Full hardness (52-54HRC) plastic moulds with high polishing and long lifetime requirments, such as bakelite plastic mould.

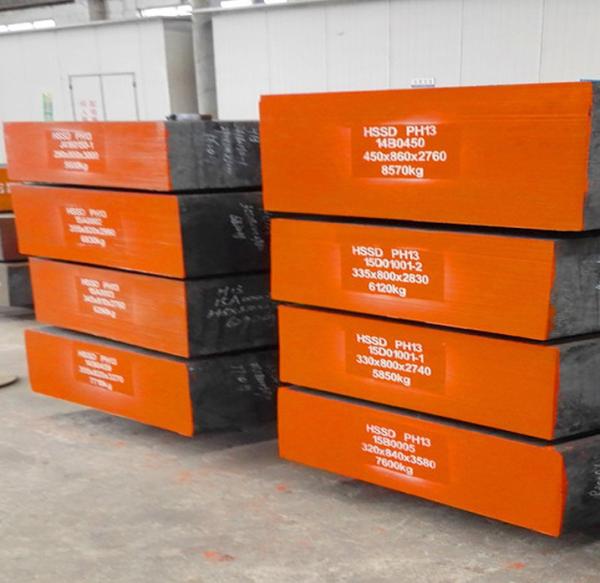

    10. Hot Work Mould Steel for Die-casting 1.2344 H13 SKD61 Product Display


    11. Changfeng Steel Hot Sale Products

    STANDARD/GRADEFlat Bar Size(mm)Round bar Size(mm)Technics
    DINAISMJISGB(China)ThicknessWidthLengthDiameterLength
    1.2311P20PDS-33Cr2Mo10-700155-22002000-600020-2002000-6000Forged, Hot Rolled
    1.2738P20+Ni-3Cr2NiMnMo10-1100155-22002000-600020-2002000-6000
    1.2379D2SKD10SKD1010-200155-8102000-600014-803000-6000
    1.2080D3SKD13Cr2Mo10-200155-8102000-600020-2003000-6000
    1.2083420-4Cr1310-500155-12002000-600012-3003000-6000
    1.2344H13SKD614Cr5MoSiV110-500155-16002000-600016-4003000-6000
    1.2510O1SKS39CrWMn10-200155-8102000-600020-2003000-6000
    1.7225SAE4140SCM44042CrMo10-200155-22002000-600016-4503000-6000

    12. Port of loading: Shenzhen, China


    13. Terms of Payment
    30% deposit, balance by L/C at sight or T/T before shipment

    14. Lead Time
    1) For abundant stock, 7-15 days.
    2) For customized products, 15-30 days.


    15. About Us

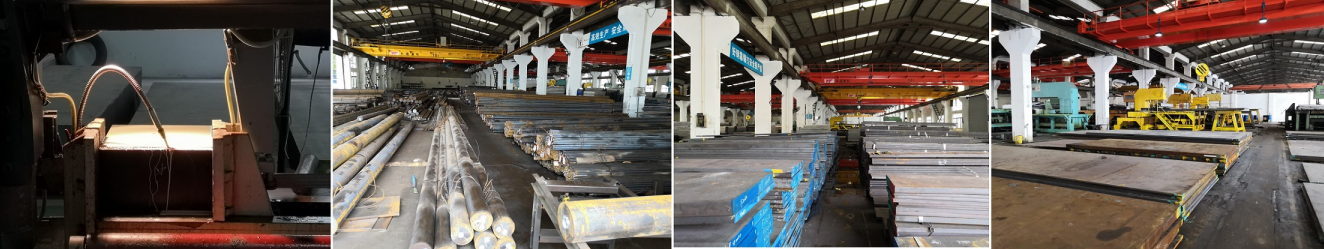

    Guangzhou Changfeng Steel Co., Ltd. is a professional special steel company, which specializing in this line in China since 2005. Our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.

    To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel and Daye Special Steel.


    We have thousand tons of stock materials in our own factory and also can provide processing services to customers. We are full of export experience for many years, our steel product covers America, Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia, Vietnam, Taiwan, and Middle-East.


    16. FAQ
    Q: Are you a manufacturer or merely a trader?
    A: We are trading company act as exporting Steel Products with our own factory,
    we can manufacture the products as in cutomer's requirement,wholesale and retail all kinds of domestic mould steel,the price we offered is very competitive compared with other agents.
    Q: How do you guarantee the quality of your product?
    A: Firstly, we can provide the certificates from the third party, such as SGS, CE,ISO if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival. Third,the products we export are mainly from ShaGang group, WenFeng group, XingCheng group, DongTe group,DaYe and so on, the quality are certained.
    Q: Can we visit your company and factory?
    A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
