1.2344 / H13 / SKD61 / 4Cr5MoSiV1 Flat Bar and Round Bar of Hot
Work Tool Steel
1. Features
a,Electro slag remelting, annealing with diffusion process and
ultrafining heat-treatment has good microstructua homogeneity and
finer dispersed carbides.
b,High isotropy, aspect rations≥0.8
c,Good tempering performance, high toughness, high temperature
strength, good thermal stability and thermal fatigue resistance.
d,Annealing hardness≤230HB,quenching hardness 51-55HRC,tempering
hardness 46-50HRC
2. Equivalent Grades
| GB | DIN | AISI | JIS | ASSAB |
| 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 |
3. Available Size (mm)
| Flat Bar Size(mm) | Round bar Size(mm) |
| Thickness | Width | Length | Diameter | Length |
| 16-260 | 205-610 | 3000-6000 | 16-200 | 300-6000 |
4. Chemical Composition (%)
| Grade | C | Si | Mn | P | S | Cr | Mo | V |
| H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| SKD61 | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| 1.2344 | 0.38-0.42 | 0.80-1.20 | 0.30-0.50 | ≤0.015 | ≤0.020 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
| 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
5. Recommend Heat Treatment
| quenching | tempering |
| Heating temperature/℃ | Cooling way | Hardness (HRC) | Tempering temperature
/ºC | Tempering number | Hardness
(HRC) |
| First preheating | Second preheating | Last heating |
| 500-550 | 750-800 | 1020-1050 | Oil Cooling or Air Cooling | 56-58 | 560-580 | 3 | 40-45 |
6. Applications
1.2344 H13 SKD61 4Cr5MoSiV1 Flat Bar Round Bar Tooling Steel belong to multi function Machinery chromium hot work tool steels which are much widely using on hot
and cold work tooling applications. 1.2344 H13 SKD61 4Cr5MoSiV1 tool steel is classified as range H steels by the AISI classification system
range.This range of steels start from H1 to H19.
In steel Flat Bar Round Bar 1.2344 H13 SKD61 4Cr5MoSiV1, the
molybdenum & vanadium acting as strengthening. The chromium content
assists die steel 1.2344 H13 SKD61 4Cr5MoSiV1 to resist softening
when using at high temperatures. 1.2344 H13 SKD61 4Cr5MoSiV1 die
steels offers outstanding combination of shock and abrasion
resistance, and possesses good red hardness. It's capable of
withstanding rapid cooling and resists premature heat checking.
Tool Steel H13 has good machinability, good weldability, good
ductility, and can be formed by multi function Machinery conventional means.
Due to Flat Bar Round Bar 1.2344 H13 SKD61 4Cr5MoSiV1 tool steel
excellent combination of very high toughness and fatigue
resistance, AISI H13 hot work tooling steel is using much more than
other tooling steel in tooling multi functional applications.

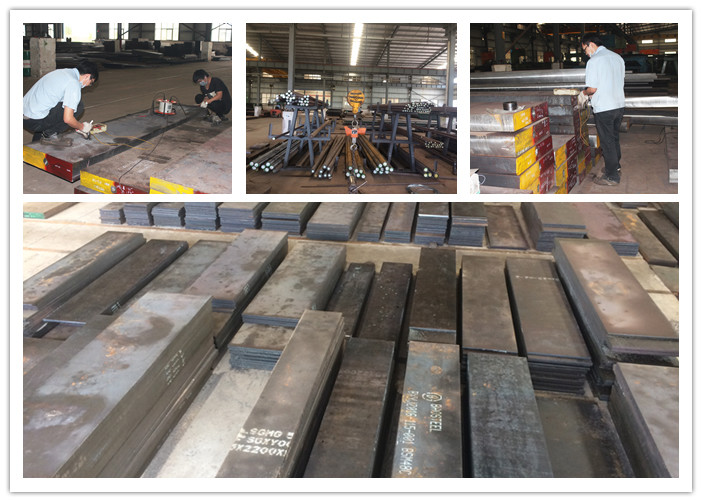

Our service
Our company have introduced large-sized vertical saw machines,
horizontal saw machines, milling machines, grinding machines and
other advance equipments, we can export our products by wholesales
and retail sales, whole plate or strip is available. All our
products can meet the standards of DIN, AISI, JIS and GB, all the
material should be inspected the ultrasonic, hardness and others
strict inspection
process before the shipment.
a, Sizes, materials and others are all at your requirements and can
be changed;
b, Price varies on materials, dimensions, finish craft and
different payments;
c, We are direct manufacture in machinery manufacturing work with
experience of several decades;
d, Detail production design will be made according to information
you offered;
e, We have adequate inventory, so that we can quick delivery;
f, The most important is that we have advanced equipment.
