Hot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 Hardness

Guangzhou Changfeng Steel Co., LTD
Contact Now
    Buy cheap Hot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 Hardness from wholesalers

    Buy cheap Hot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 Hardness from wholesalers
    • Buy cheap Hot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 Hardness from wholesalers
    • Buy cheap Hot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 Hardness from wholesalers

    Hot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 Hardness

    Ask Lasest Price
    Brand Name : CF STEEL
    Model Number : 1.1210 S50C SAE1050 50#
    Certification : ISO/Mill Certificate
    Price : USD580-725/ MT
    Payment Terms : L/C, T/T
    Supply Ability : 3000t/Month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    Hot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 Hardness

    Plastic mould steel plate Bao Steel plate S50C SAE1050 1.1210 C50 for dies and frame thickness 10-300mm


    SAE1050/1.1210/S50C/50#, A High strength medium and low-ductility carbon steel. Have no temper brittlenss and with normal cutting performance.


    Details for SAE1050/1.1210/S50C/50#

    Chemical
    composition (%)
    CSiMnPSCrNi
    0.48-0.550.17-0.370.60-0.90≤0.035≤0.035≤0.25≤0.25
    Features1. Medium carbon steel
    2. High strength and machinability
    3. Good toughness, plasticity and abrasion resistance 4. Typically used in quenched and tempered or normalized condition
    Applications1.For shaft part
    2. Widely used in machine manufacturing
    3. Making injection plastic mould, mould frame
    SizePlateThickness(mm)Width(mm)Length(mm)
    max800max2200max9000
    Round Bar
    Diameter(mm)
    Length(mm)
    max800max9000
    Packing1. 20ft:GW 27T(5.8mx2.13mx2.18m)
    2. 40ft:GW 27T(11.8mx2.13mx2.18m)
    Delivery days1. For abundant stock, 15-20 days.
    2. For customized products, 30-50 days.

    Quality Contation:
    1. Both end of each bar can be cut as customer's requirement
    2. Ladle furnanced and vacuum de-gassed
    3. Show heat number on each bar
    4. Surface condition the surface of the hot rolled square bar shall befree cracks, scar and wrinkles that affect the use of the billets. In case there is the above-mentioned defect, it shall be remove.
    5. The mill test certificate shall show the chemical composition, and it is guaranteed that the chemical composition shall be within the limit stipulated in the contract.

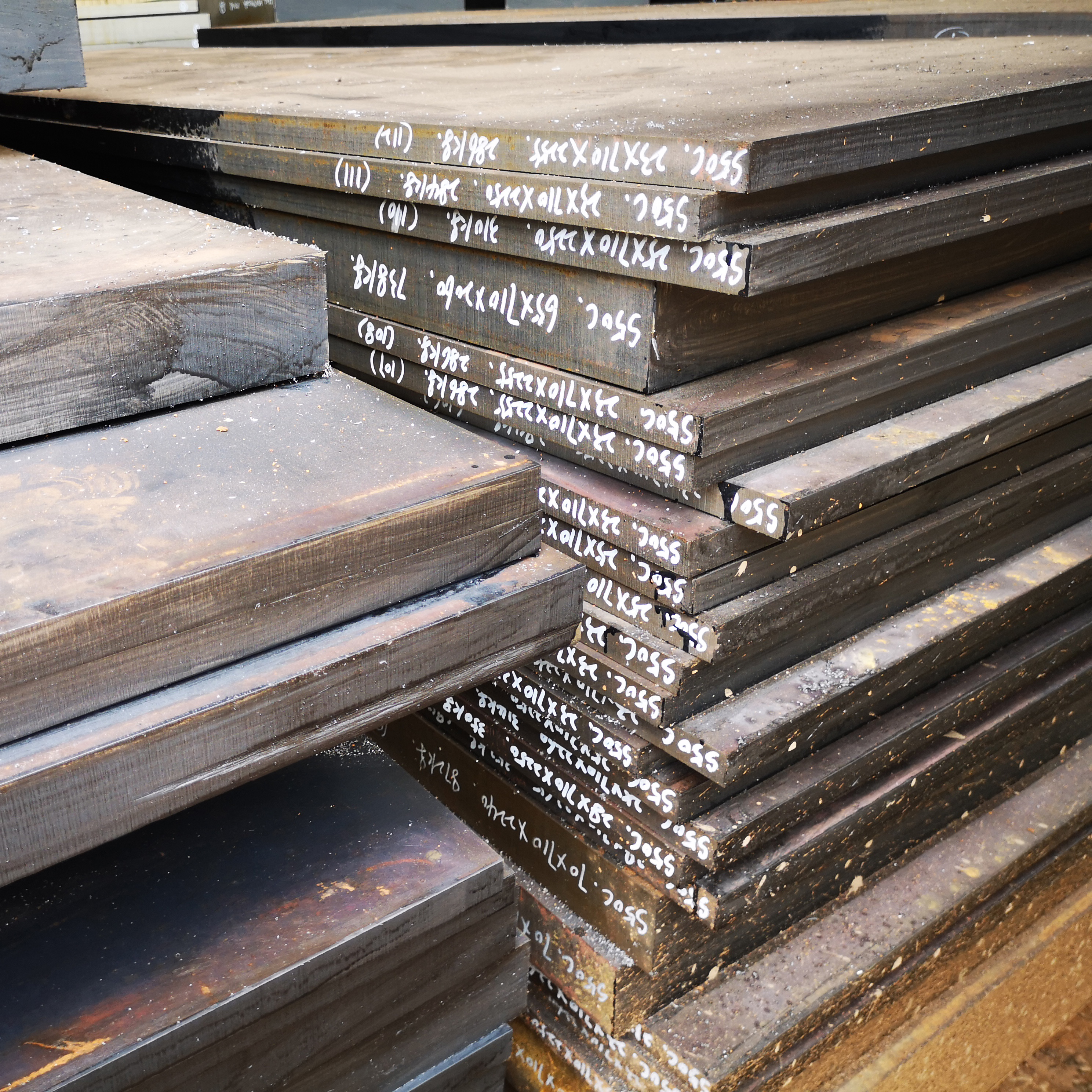

    S50C SAE1050 1.1210 Hot Rolled Carbon Steel Die Steel picture show
    Hot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 Hardness


    Changfeng Tool & Die Steel Hot Sale product info:

    STANDARD/GRADEFlat Bar Size(mm)Round bar Size(mm)Technics
    DINAISMJISGB(China)ThicknessWidthLengthDiameterLength
    1.121SAE1050S50C50#10-450155-22002000-12000Forged, Hot Rolled
    1.2311P20PDS-33Cr2Mo10-460155-22002000-1000020-2002000-6000
    1.2738P20+Ni-3Cr2NiMnMo21-300155-22002000-800020-2002000-6000
    1.2379D2SKD10SKD1010-200155-8102000-600014-803000-6000
    1.2080D3SKD13Cr2Mo10-200155-8102000-600020-2003000-6000
    1.2083420-4Cr1310-500155-12002000-600012-3003000-6000
    1.2344H13SKD614Cr5MoSiV110-500155-16002000-600016-4003000-6000
    1.2510O1SKS39CrWMn10-200155-8102000-600020-2003000-6000
    1.7225SAE4140SCM44042CrMo10-280155-22002000-600016-4503000-6000



    About us:
    Guangzhou ChangFeng Steel Co., Ltd. is a professional special steel company, which specialized in exporting mould steel products based in China. With more than 20 years experience in special steel industry, our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.

    Hot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 HardnessHot Rolled Mold Steel Plate S50C SAE1050 1.1210 C50 50# HB160-200 Hardness

    Why Choose Us
    1. Competitive price and quality from our own factory
    2. Approved by ISO9001, CE, SGS every year
    3. Best service with 24 hours reply
    4. Flexible payment with T/T,L/C , Trade Assurance
    5. Smooth production ability(1000tons/month)
    6. Quick delivery and standard exporting package
    7. OEM/ODM
