DIN1.2316 Annealed Hot Forging Die Block For Plastic Mould

    Buy cheap DIN1.2316 Annealed Hot Forging Die Block For Plastic Mould from wholesalers

    Buy cheap DIN1.2316 Annealed Hot Forging Die Block For Plastic Mould from wholesalers
    • Buy cheap DIN1.2316 Annealed Hot Forging Die Block For Plastic Mould from wholesalers
    • Buy cheap DIN1.2316 Annealed Hot Forging Die Block For Plastic Mould from wholesalers
    • Buy cheap DIN1.2316 Annealed Hot Forging Die Block For Plastic Mould from wholesalers

    DIN1.2316 Annealed Hot Forging Die Block For Plastic Mould

    Ask Lasest Price
    Brand Name : Baosteel
    Model Number : DIN 1.2316/AISI431 /JIS SUS431/X36CrMo17
    Certification : ISO
    Price : USD2500/T, FOB
    Supply Ability : 500tons/month
    Delivery Time : 7days
    • Product Details
    • Company Profile

    DIN1.2316 Annealed Hot Forging Die Block For Plastic Mould

    Marstenic Stainless Steel DIN1.2316 Pre-hardened Annealed Hot Forged Die Block For Plastic Mould


    1.2316 are in the class of plastic mold and stainless steel which was developed from 2083 (AISI420)
    By adding more composition of Chromium and Molybdinum, it can increase corrosive resistance
    Moreover, it also comes with quenching and tempering as normal selling condition
    Hardness is in range 300 HB (30 HRC), result in easy to machining without hardening againg
    Also, help avoid changing in its dimension from hardening process
    Suitable for plastic mold that require corrosive resistance during plastic making such as
    PVC, Amino plastic and thermo plastic

    NEAREST EQUIVALENT DIN 2316 (Code X36CrMo17) AISI431 JIS SUS431


    Chemical Composition

    GradesCSiMnPSMoNiCr
    1.23160.39-0.43≤1.09≤1.0≤0.025≤0.0061.00.313.5-16.0

    Features

    . Higher corrosive resistance as compared to 2083 at its class
    • Higher strength as compare to 2083
    • Wear and corrosive resistance
    • strength enough to stand for presssure from injection plastic mold
    • Texturing properties in equivalent to 2311
    • Machining ability is in moderate level
    • Can do EDM well
    • Risk free of damange from heat treatment process
    • Homogeneity hardness throughout the whole thickness
    • Hardening ability in high level
    • Hardness after hardening process less than 2083
    • Can do Passivation to enhance corrosive reisstance.

    Applications

    2316 is a stainless steel and tool steel in the class of Plastic mold Selling condition is harden and temper
    Hardness in range of 1000 N/mm2 suitable for plastic mold Especially corrosive resistance and rusty
    condition mold such as Amino Plastic, PVC, Thermo plastic
    Thanks to wear and corrosive resistance properties, it can also apply to shaft and other parts of water pump
    Also, good to use in machinery part that require strength with corrosive resistance. For example,

    • High corrosive Plastic mold
    • Plastic extrusion mold
    • Machinery part , shaft of water pump and staple part
    • Compressor part
    • Insert sleeve which made of 2083 to enhance strength and corrosive properties.

    Heat Treatment

    Soft Annealing : 760 – 780 oC, cooling in furnace, max hardness HB230

    Hardening : 1020-1050 oC, in oil or hot bath 500-550 oC

    Hardness : after quenching HRc49

    Tempering

    Temperature OC100200300400500600
    HRc494746464732

    Stock Size


    Shape
    Round BarThickness20-180mm
    Length3000-6000mm
    FlatsThickness8-250mm
    Width155-610mm

    Sizes and Conditions

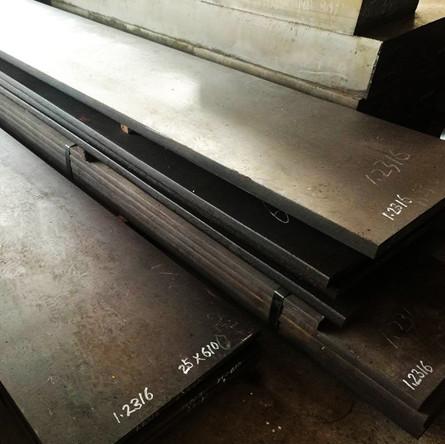

    Our steel materials are in different sizes and conditions specially catered to our customers' needs. They come in round bars, flat bars, plates and blocks.

    The conditions of the materials vary from pre-hardened, hot rolled,annealed, quenched and tempered to surface conditions such as black, pre-machined,griding and polish.
