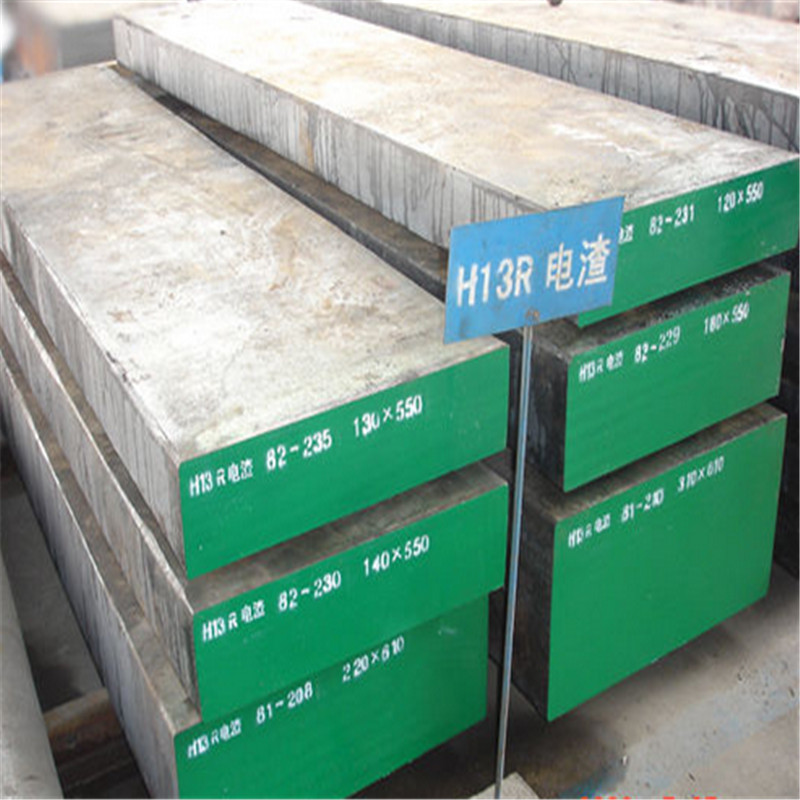

1.2344 /H13 Hot Work Die Steel Sheet Black / Milling / Machined
Surface
Introduction:
1.2344 / H13 is a high roughness high isotropy hot work die steel
and has good thermal stability and thermal fatigue resistance.
1.2344 / H13 is a chromium, molybdenum, vanadium high-performance long-life
general type alloy hot work mould & die steel produced by Hongsheng
Heavy Industry and Shanghai University. It has high toughness, high
tropism, high thermal stability and high resistance to cold and
heat fatigue performance.
Equivalent grades:
| GB | DIN | AISI | JIS | ASSAB |
| 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 |
Available size(mm):
| Flat Bar Size(mm) | Round bar Size(mm) |
| Thickness | Width | Length | Diameter | Length |
| 16-260 | 205-610 | 3000-6000 | 16-200 | 300-6000 |
Suface treatment:
| Steel plate | Black / Milling / Machined |
| Round bar | Black / Grinding / Polished / Peeled / Turned |
Applications:
Mainly used in the manufacture of die-casting molds, hot forging
molds, hot extrusion molds, high-strength plastic molds and other
high-performance long life required hot molds, it can replace
imported hot die steel Superior AISI H13, WNr. 1.2344, ASSAB 8407,
SKD31, etc.
Chemical composition:
| Grade | C | Si | Mn | P | S | Cr | Mo | V |
| H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| SKD61 | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| 1.2344 | 0.38-0.42 | 0.80-1.20 | 0.30-0.50 | ≤0.015 | ≤0.020 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
| 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
Feature:
Electro slag remelting, annealing with diffusion process and
ultrafining heat-treatment has good microstructural homogeneity and
finer dispersed carbides.
High isotropy, aspect ratios≥8.
Good tempering performance, high toughness, high temperature
strength, good thermal stability and thermal fatigue resistance.
About packing:
Standard export packing or according to customer's request.
Heat treatment:
| Quenching ℃ | Tempering ℃/HRC |
| 1020-1050℃ | 100 | 200 | 300 | 400 | 500 | 550 | 600 | 650 | 700 |
| Air/oil or slat bath | 52 | 52 | 52 | 54 | 54 | 54 | 50 | 42 | 32 |
Techinical service:
Die vacuum heat treatment and die surface
treatment(N-O,C-N,carburize and nitridation surface treatment).
Delivery condition:
EF, or ESR, Hot rolled or forged, black surface, machined or
milling.
Annealing hardness≤230HB, quenching hardness 51-55HRC, tempering
hardness 46-50HRC.
