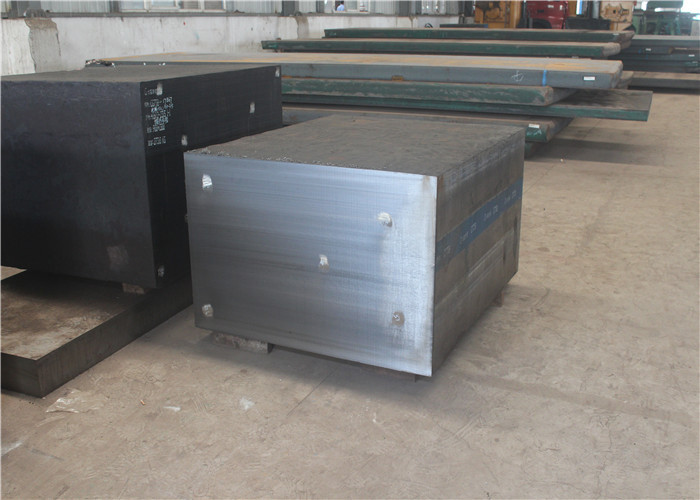

Forged Steel Block 1.2311 / P20 / 3Cr2Mo Special Tool Steel for
Large-sized Mold
Degree of hardness and the metallography structure are even, the
cutting value and the polishing performance are outstanding, can be
harden by flame, plates hardly chrome and nitriding. This mould
steel can apply to general requirements of the size of the plastic
mould and can be operated by electric corrosion.
Applications
Used for various lager-sized or medium-size precision plastic mould
and alloy parts.
a, Ideally suited for the production of plastic moulds;

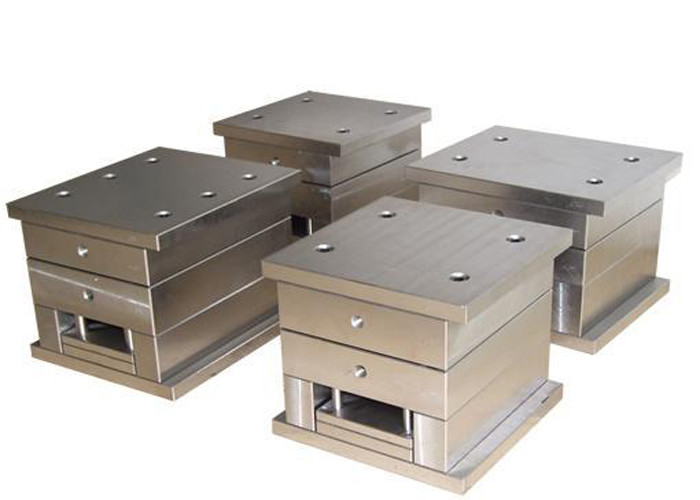

b, Die holders, zinc die casting dies, backers, bolsters and
injection moulds;
c, Shafts, rails and wear strips;
1, Features
a, Good hardness uniformity and polishing property,good machining
properties.
b, Good integral machanical performance under high temperature, Corrosion resistance
c, Good heat-resistance and fatigue-resistance,high mechanical
behavior,cutting mechanical property.
d, Pre-hardened to HRC28-32, can be directly used for mould
processing, shorten the construction period.
e, High putity and homogeneous structure of China's biggest ESR
production base for its strict requirement in the whole process of
exploitation, smelting, vacuum degassing, ESR, forging, annealing,
inspection.
2, Equivalent Grades
| GB | DIN | AISI | JIS |
| 3Cr2Mo | 1.2311 | P20 | PDS-3 |
3, Chemical Composition (Wt%)
| Steel Grade | C | Si | Mn | Cr | Mo | S | P |
| 1.2311 | 0.35-0.45 | 0.20-0.40 | 0.60-1.00 | 1.80-2.10 | 0.30-0.55 | ≤0.003 | ≤0.030 |
| P20 | 0.35-0.45 | 0.20-0.40 | 0.60-1.00 | 1.80-2.10 | 0.30-0.55 | ≤0.003 | ≤0.030 |
| PDS-3 | 0.35-0.45 | 0.20-0.40 | 0.60-1.00 | 1.80-2.10 | 0.30-0.55 | ≤0.003 | ≤0.030 |
4, Available Size (mm)
| Block | Thickness (mm) | Width (mm) | Length (mm) |
| 200-1000 | 800-1600 | 2000-6000 |
5, Recommend Heat Treatment
| Quenching | Tempering |
| Heating temperature/℃ | Cooling way | Hardness (HRC) | Heating temperature/℃ | Cooling way | Hardness
(HRC) |
| 850-880 | Oil Cooling | 50-52 | 580-640 | Air Cooling | 28-32 |
6, Delivery Condition
a. Hot rolled , Black, Annealed or Q+T
b. Hardness: HRC=28--34
c. Annealed Hardness: HBS<235.
