    ESR Hot Rolled Pre - Hardened Plastic Mold Steel Plate 1.2083 420 S136 4Cr13

    Ask Lasest Price
    Brand Name : CF STEEL
    Model Number : 1.2083 SUS420J2 420 S136 4Cr13
    Certification : ISO/Mill Certificate/SGS
    Price : USD1000-1600/ MT
    Payment Terms : L/C, T/T
    Supply Ability : 3000t/Month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    ESR Hot Rolled Pre - Hardened Plastic Mold Steel Plate 1.2083 420 S136 4Cr13

    ESR Pre-Hardened Plastic Mould Steel Plate 1.2083 420 S136 4Cr13 for tool and die
    1.2083 mould steel is a kind of plastic mould steel with high chromium element which is up to 13%.1.2083mould steel has good wear resistance and good polishing, it widely used for acid proof plastic mold.


    1,Grade

    DIN 1.2083 AISI 420 JIS SUS420J2

    2,Feature
    Excellent corrosion resistance;Excellent abrasion resistance and elasticity
    Excellent high-temperature abrasion resistance
    Medium toughness,dimensionally stable,high compressive strength

    3,Application
    Highly stressed cutting and punching tools for thin sheets
    Stone processing tools and knives for paper and plastics,shear knives
    Chemical Resistance plastic mold,Corrosion of thermoplastic plastics


    4,Hardness after tempering :

    Tempering100°C200°C300°C400°C
    HRC54525252


    5,Chemical composition (%)

    Gradedelivery hardnessºCCSiPSCrNiMoMn
    420HRC32-360.40.8≤0.03≤0.0313.5~0.60.5
    4Cr13HB≤2010.36-0.48≤0.6≤0.035≤0.0312-14≤0.6~≤0.8
    1.2083HB≤2350.26-0.35≤0.6≤0.03≤0.0312.5-14≤0.5~≤0.8
    S136HB≤2350.380.8≤0.03≤0.0313.6~~0.5


    6,Package: We provide standard export packing or according to customers' request.
    7,Delivery: For abundant stock, 7-15 days.For customized products, 15-30 days.
    8,Heat Treatment:

    Annealing :810 - 830 °C
    Hardness after annealing :Max.230 HB
    Stress relieving:Approx.650 °C
    Hot forming:1050 - 850 °C
    Hardening:970 - 990 °C
    Quenching media:Oil, Vacuum
    Hardness after quenching:52 - 56 HRC

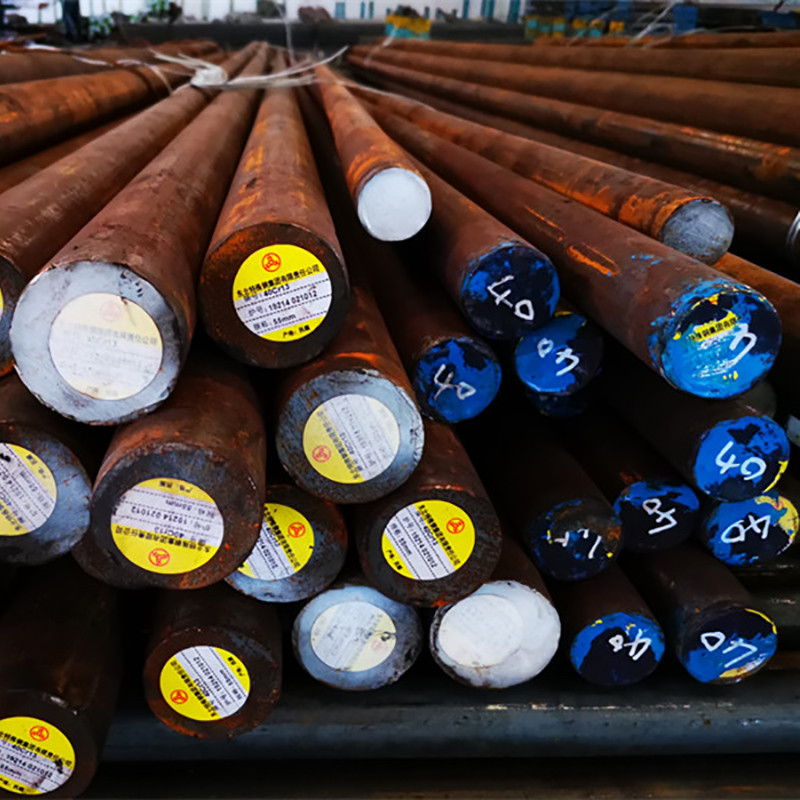

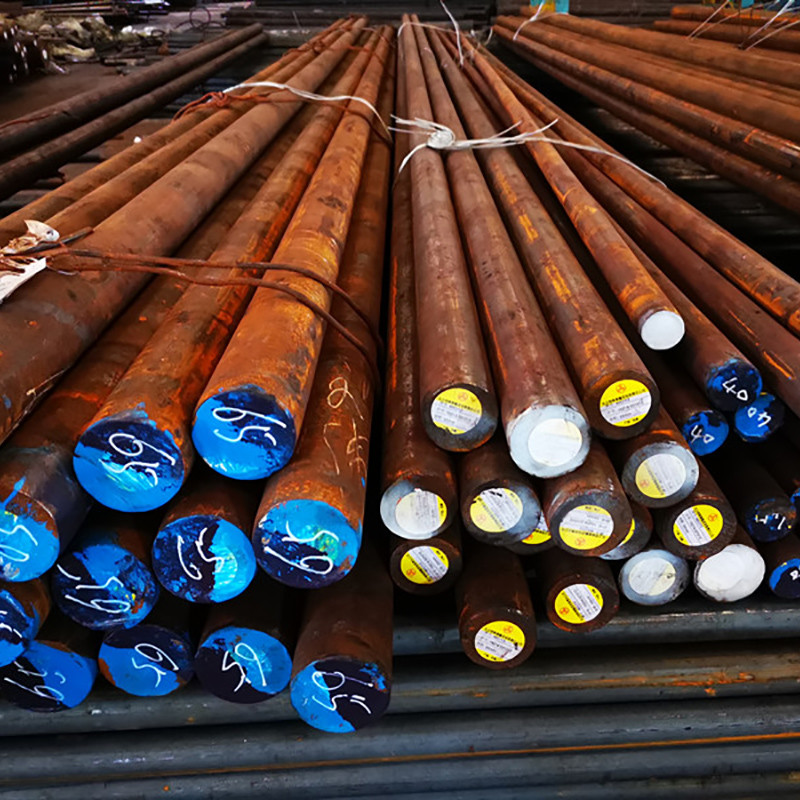

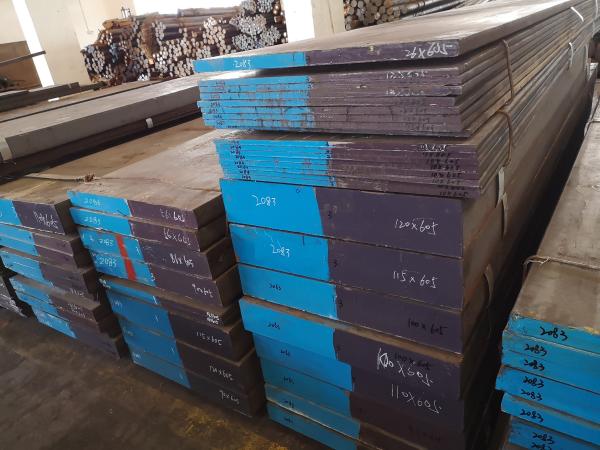

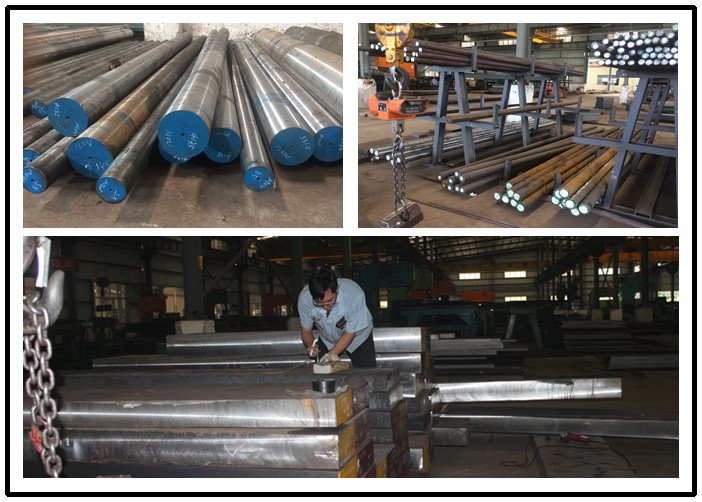

    9,Product show:
    Alloy Mold Steel 420 1.2083 S136 4Cr13
    ESR Hot Rolled Pre - Hardened Plastic Mold Steel Plate 1.2083 420 S136 4Cr13ESR Hot Rolled Pre - Hardened Plastic Mold Steel Plate 1.2083 420 S136 4Cr13ESR Hot Rolled Pre - Hardened Plastic Mold Steel Plate 1.2083 420 S136 4Cr13
    10. Changfeng Tool & Die Steel main product:

    STANDARD/GRADE of steelFlat Bar Size(mm)Round bar Size(mm)Technics
    DINAISMJISGB(China)ThicknessWidthLengthDiameterLength
    1.121SAE1050S50C50#10-450155-22002000-12000Forged, Hot Rolled
    1.2311P20PDS-33Cr2Mo10-460155-22002000-1000020-2002000-6000
    1.2738P20+Ni-3Cr2NiMnMo21-300155-22002000-800020-2002000-6000
    1.2379D2SKD10SKD1010-200155-8102000-600014-803000-6000
    1.2080D3SKD13Cr2Mo10-200155-8102000-600020-2003000-6000
    1.2083420-4Cr1310-500155-12002000-600012-3003000-6000
    1.2344H13SKD614Cr5MoSiV110-500155-16002000-600016-4003000-6000
    1.2510O1SKS39CrWMn10-200155-8102000-600020-2003000-6000
    1.7225SAE4140SCM44042CrMo10-280155-22002000-600016-4503000-6000

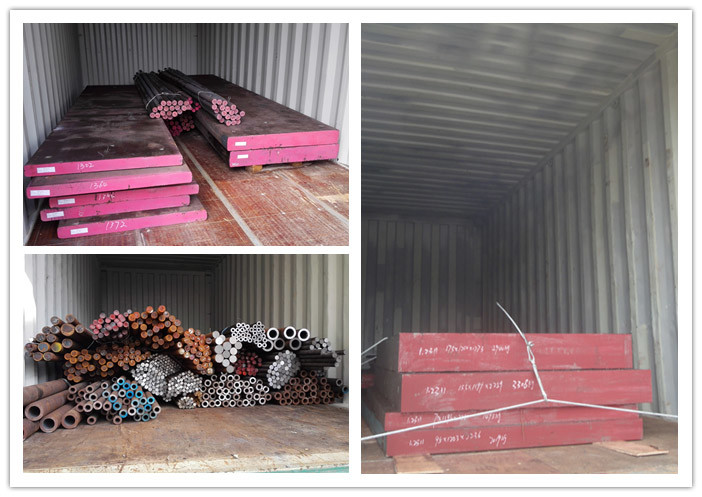

    11. Loading picture:
    ESR Hot Rolled Pre - Hardened Plastic Mold Steel Plate 1.2083 420 S136 4Cr13
    12. Port of loading: Shenzhen, China
    13. Terms of Payment
    30% deposit, balance by L/C at sight or T/T before shipment
    14. About Us
    Guangzhou Changfeng Steel Co., Ltd. is a professional special steel company, which specializing in this line in China since 2005. Our main products are Plastic Mould Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and Forged Block.

    To ensure provide high quality products to customers, we have close cooperation with many Chinese first class special steel enterprises, including Baosteel Group, Dongbei Special Steel, Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng Special Steel and Daye Special Steel.
