AISI420 / DIN1.2083 / GB4Cr13 Stainless Steel with High Hardness
and High Wear Resistance
1.2083/S136/4Cr13/420 steel is a martensitic stainless steel material with high hardness and
high wear resistance.
1. Chemical composition (%)
| Grade | delivery hardnessºC | C | Si | P | S | Cr | Ni | Mo | Mn |
| 420 | HRC32-36 | 0.4 | 0.8 | ≤0.03 | ≤0.03 | 13.5 | ~ | 0.6 | 0.5 |
| 4Cr13 | HB≤201 | 0.36-0.48 | ≤0.6 | ≤0.035 | ≤0.03 | 12-14 | ≤0.6 | ~ | ≤0.8 |
| 1.2083 | HB≤235 | 0.26-0.35 | ≤0.6 | ≤0.03 | ≤0.03 | 12.5-14 | ≤0.5 | ~ | ≤0.8 |
| S136 | HB≤235 | 0.38 | 0.8 | ≤0.03 | ≤0.03 | 13.6 | ~ | ~ | 0.5 |
2. Recommend heat treatment:
| Heating temperature/ºC | Cooling way | Hardness(HRC) | Tempering
temperature/ºC | Hardness(HRC) |
| Preheating temperature | Solution temperature |
| 920-980 | 1050-1100 | Oil Cooling | 48-54 | 200 | ≥48 |
3. Available size
| Flat Bar Size(mm) | Round Bar Size(mm) |
| Thickness | Width | Length | Diameter | Length |
| 12-200 | 800-2000 | 2000-6000 | 15-500 | 2000-6000 |
4. Supply states: 30-36HRC
5. Features
1) Good corrosion resisting
2) High cast polarimetry
3) Good wear resistance
4) Excellent machining property
5) Quenching with excellent stability
6. Advantages
1) The mold manipulation or storage in humid environment, do not
need special protection.
2) Lower production costs due to the mold cooling water from corrosion
(unlike ordinary tool steel), heat transfer characteristics,
cooling efficiency during the lifetime of the mold to maintain
stability and ensure the constancy of the forming die time.
3) STAVAX ESR (S-136) is recommended for all molds, due to its
special nature, it is more suitable for the needs of specific
environments.
4) Resistant injection molding material or work and must be stored in
a wet environment, mold corrosion, rust on the use of corrosive
PVC, acetic acid salts.
5) Abrasion wear resistance using large injection molding material
(including thermoset injection molding) or the requirements of the
mold have longer working hours, such as electronic parts,
discard-style meal knives, and other utensils.
6) High surface smoothness of the production of optical products such
as cameras, sunglasses, chemical equipment and plastic products.

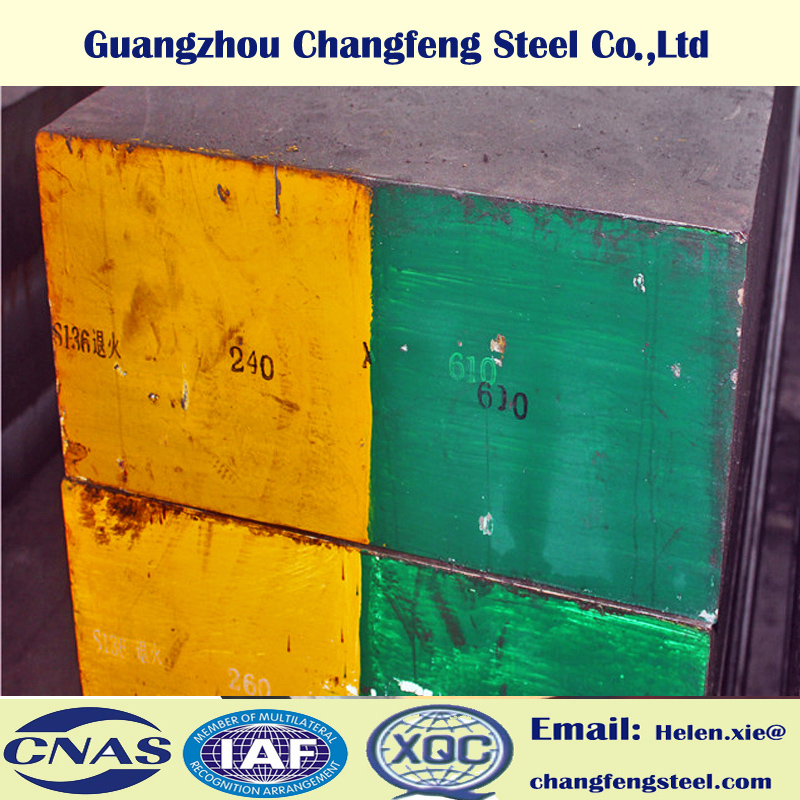

7. Picture Display
8. About GUANGZHOU CHANGFENG STEEL CO.,LTD
Guangzhou Changfeng Steel Co., Ltd. is a professional special steel company, which specializing in
this line since 2005 in China. Our main products are Plastic Mould
Steel, Hot Work Mould Steel, Cold Work Mould Steel, Alloy
Structural Steel, Tool Steel, Stainless Steel, Carbon Steel and
Forged Block. To ensure provide high quality products to customers,
we have close cooperation with many Chinese first class special
steel enterprises, including Baosteel Group, Dongbei Special Steel,
Changcheng Special Steel, Hongsheng Heavy Industry, Xingcheng
Special Steel, Daye Special Steel.
We have thousand tons of stock materials in our own factory and
also can provide processing services to customers. We are full of
export experience for many years, the product covers America,
Germany, France, Italy, Turkey, Singapore, Thailand, Malaysia,
Vietnam, Taiwan, and Middle-East.
After years of development, the company has established a complete
quality management and export service system. We have a group of
experienced and competent elites and is capable of offering the
best service to clients. Our company equips with large-sized
Vertical saw machines, Horizontal saw machines, Milling machines,
Grinding machines and other advanced equipments to provide
customers with cutting and other processing services. All the
products should be inspected the metallographic analysis, hardness,
ultrasonic flaw detection and other strict inspection processes,
which meet the standards of DIN, AISI, JIS and GB to ensure their
function and quality.
Our company keeps the principle of “sincerely cooperation, endless
striving for perfection”. We desire to establish the long-term
mutual beneficial and win-win relationship with clients all over
the world.
9.Why Choose Us
1) Competitive price and quality from our own factory
2) Approved by ISO9001, CE, SGS every year
3) Best service with 24 hours reply
4) Flexible payment with T/T,L/C , Trade Assurance
5) Smooth production ability(1000tons/month)
6)Quick delivery and standard exporting package
7) OEM/ODM
10 RFQ
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and
trading company. We specialized in plastic mould steel,hot work
mould steel,cold work mould steel,alloy steel for mechanical,high
speed steel, etc. All material are with high quality and
competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party,
such as SGS, CE,ISO if you need. Secondly, we have a complete set
of inspection system and every process is checked by QC. Quality is
the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our
warehouse. If the material don't have stock, the delivery lead time
is about 30-50days (depend on the quantity)after receiving your
prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C or Trade Assurance.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you
come to China and arrange our driver to our airport to pick you up
when you come.
