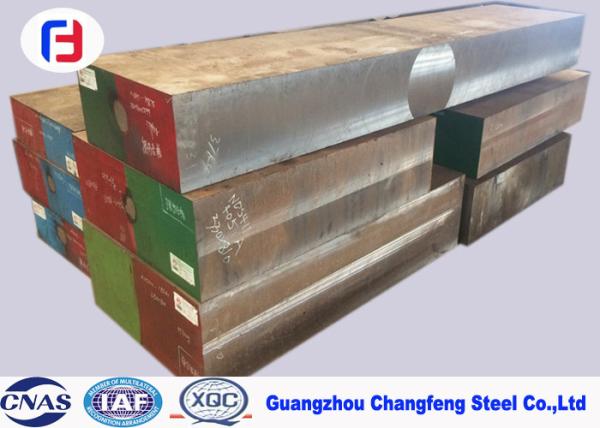

High Strength Plastic Die 1.2344 Hot Rolled Alloy Steel Hardness
46-50HRC
Equivalent grades:
| GB | DIN | AISI | JIS | ASSAB |
| 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 |
Main introduction:
Hot Rolled Alloy Steel 1.2344 / H13 is a chromium, molybdenum, vanadium high-performance long-life
general type alloy hot work mould & die steel produced by Hongsheng
Heavy Industry and Shanghai University. It has high toughness, high
tropism, high thermal stability and high resistance to cold and
heat fatigue performance.
Chemical composition(%):
| Grade | C | Si | Mn | P | S | Cr | Mo | V |
| H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| SKD61 | 0.32-0.42 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
| 1.2344 | 0.38-0.42 | 0.80-1.20 | 0.30-0.50 | ≤0.015 | ≤0.020 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
| 4Cr5MoSiV1 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
Applications:
1) Full hardness (52-54Hrc) plastiy moulds with igh polishing and
long lifetime requirements, (such as bakelite plastic mould).
2) Lead Zn and Al alloy die casting moulds (such as engine
radiater, lights ang other decoration products).
3) Aluminum extruded moulds (such as Aluminum window frame,
computer radiator).
4) Hot forging moulds (such as auto connecting rod, crank,
stainless dinner knife).
5) Cu alloy extruded, die casting moulds.
Available size(mm):
| Flat Bar Size(mm) | Round bar Size(mm) |
| Thickness | Width | Length | Diameter | Length |
| 16-260 | 205-610 | 3000-6000 | 16-200 | 300-6000 |
Surface treatment:
| Steel plate | Black / Milling / Machined |
| Round bar | Black / Grinding / Polished / Peeled / Turned |
Feature:
1) Low phosphorus, sulfur and residual elements;
2) Patented high temperature diffusion and ultra-fine heat
treatment, excellent strength and toughness;
3) Excellent resistance to temper softening and thermal fatigue;
4) Excellent heat treatment dimensional stability and plating
performance.
Recommend heat treatment:
| Quenching /℃ | Tempering ℃/HRC |
| 1020-1050/℃ | 100 | 200 | 300 | 400 | 500 | 550 | 600 | 650 | 700 |
| Air/oil or slat bath | 52 | 52 | 52 | 54 | 54 | 54 | 50 | 42 | 32 |
Technical service:
Die vacuum heat treatment and die surface
treatment(N-O,C-N,carburize and nitridation surface treatment).
Delivery condition:
EF, or ESR, Hot rolled or forged, black surface or milling.
Hardness: annealing hardness≤230HB, quenching hardness 51-55HRC,
tempering hardness 46-50HRC.
For abundant stock, 15-20 days.For customized products, 30-50 days.
