Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm

Guangzhou Changfeng Steel Co., LTD
Contact Now
    Buy cheap Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm from wholesalers

    Buy cheap Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm from wholesalers
    • Buy cheap Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm from wholesalers
    • Buy cheap Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm from wholesalers
    • Buy cheap Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm from wholesalers
    • Buy cheap Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm from wholesalers

    Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm

    Ask Lasest Price
    Brand Name : CF Steel
    Model Number : H13 / 1.2344 / SKD61
    Certification : ISO / Mill Certificate
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Mt/month
    Delivery Time : 15-20 days
    MOQ : 3 MT
    • Product Details
    • Company Profile

    Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm

    Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm


    Introduction:

    H13 / 1.2344 / SKD61 Hot Work Mould Steel is the pressure resistant hot work die steel. The electroslag remelting of the steel is of uniform material, good hardenability, excellent mechanical and polishing properties, high toughness and plasticity, good high and low temperature wear resistance, and high temperature fatigue and heat resistance.


    Available size(mm):

    Flat Bar Size(mm)Round bar Size(mm)
    ThicknessWidthLengthDiameterLength
    16-260205-6103000-600016-200300-6000

    Chemical Composition(%):

    GradeCSiMnPSCrMoV
    H130.32-0.450.80-1.200.20-0.50≤0.030≤0.0304.75-5.501.10-1.750.80-1.20
    SKD610.32-0.420.80-1.200.20-0.50≤0.030≤0.0304.75-5.501.10-1.750.80-1.20
    1.23440.38-0.420.80-1.200.30-0.50≤0.015≤0.0204.80-5.501.20-1.500.90-1.10
    4Cr5MoSiV10.32-0.450.80-1.200.20-0.50≤0.030≤0.0304.75-5.501.10-1.750.80-1.20

    Feature:

    1) Electroslag remelting steel, the steel has a high hardenability and thermal cracking resistance, the steel contains a higher content of carbon and vanadium, good wear resistance, toughness is relatively weakened, with good heat resistance.
    2) High temperature with good strength and hardness, high wear resistance and toughness, excellent comprehensive mechanical properties and high resistance to tempering stability.
    3) Good resistance to high temperature tempering performance, hardness steady working under 600℃, dimensional accuracy stability durability.
    4) Cold and hot fatigue resistance, strong ability to resist crack.

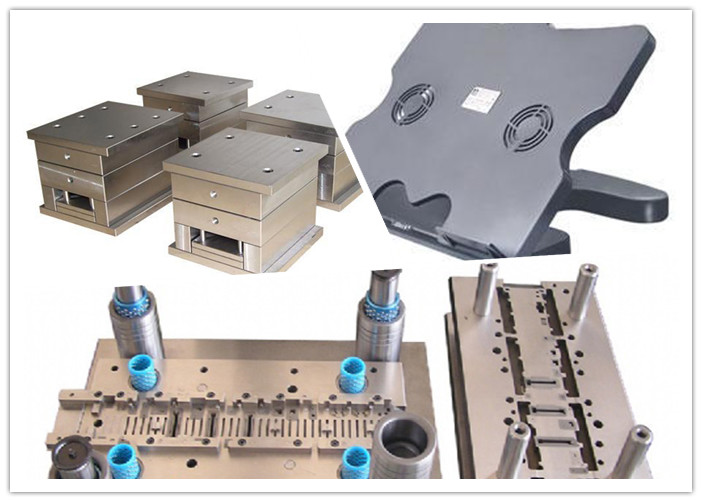

    Applications:

    1) Full hardness (52-54Hrc) plastiy moulds with igh polishing and long lifetime requirements, (such as bakelite plastic mould).
    2) Lead Zn and Al alloy die casting moulds (such as engine radiater, lights ang other decoration products).
    3) Aluminum extruded moulds (such as Aluminum window frame, computer radiator).
    4) Hot forging moulds (such as auto connecting rod, crank, stainless dinner knife).
    5) Cu alloy extruded, die casting moulds.

    Die-casting Hot Work Tool Steel Flat Bar DIN 1.2344 Thickness 20-250mm


    Recommend heat treatment:

    quenchingtempering
    Heating temperature/℃Cooling wayHardness (HRC)Tempering temperature/ºCTempering numberHardness
    (HRC)
    First preheatingSecond preheatingLast heating
    500-600820-8601010-1040Oil Cooling53-55560-620250-46

    Technical service:

    Die vacuum heat treatment and die surface treatment(N-O,C-N,carburize and nitridation surface treatment).


    Terms of payment:

    30% deposit T/T and the balance by L/C at sight, or T/T.


    Delivery condition:

    For abundant stock, 15-20 days.For customized products, 30-50 days.


    Our service:

    1, We are the professional supplier of stainless steel welded tubes or pipes;

    2, Stock always kept for small scale emergency demand;

    3, Small or big order can be delivered on time per customer’s requirement.
